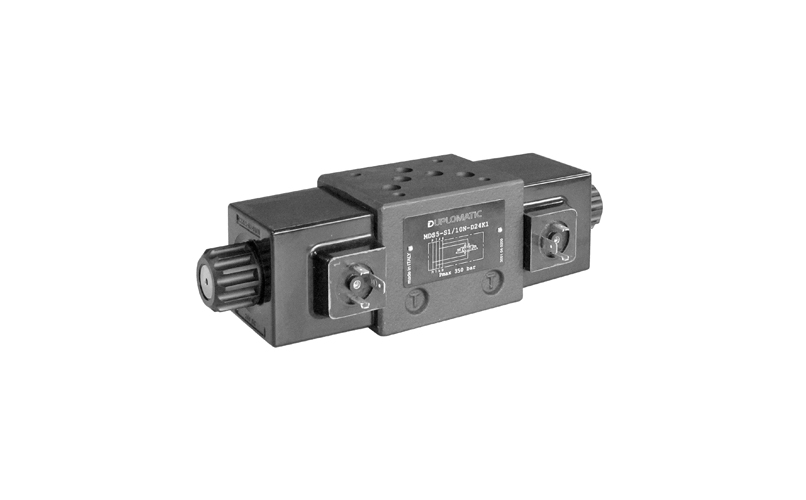

Solenoid actuated switching valve
MDS5
Details
- Catalog: 41351
- Size: ISO 4401-05
- Mounting Style: stackable
- Max Operating Pressure: 350 bar
- Max Flow: 100 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: DE (13/07/2023)
DESCRIPTION
The MDS5 is a switching valve for flow directions, or to select pressure values. For stack mounting.
The connection of the valve in parallel to the P – T - A – B lines of the circuit allows easy construction of different hydraulic configurations, reducing the pressure drops to a minimum. The valve is available with DC or AC solenoids.
Alternative to the standard manual override there is the boot protected override.
