Flow control valve
RPC1*/4M
Details
- Catalog: 66300
- Size: ISO 4401-05
- Mounting Style: stackable
- Max Operating Pressure: 250 bar
- Max Flow: 30 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: IT (03/11/2020)
DESCRIPTION
The RPC1*/4M valve is a flow control valve with pressure and temperature compensation, made in a stackable version. It is used in hydraulic circuits where the speed control of actuators is required. If coupled with switching solenoid valves (like MDS5, see catalog 41351) it is possible to obtain circuits for fast / slow control. It is available in six flow adjustment ranges up to 30 l/min.RELATED PRODUCTS
-
Solenoid actuated directional control valve
-
Solenoid actuated switching valve
-

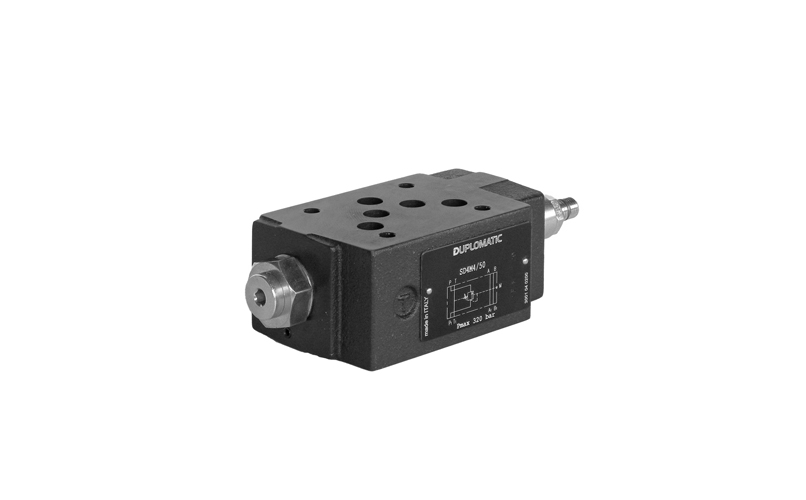

Direct operated sequence valve
-

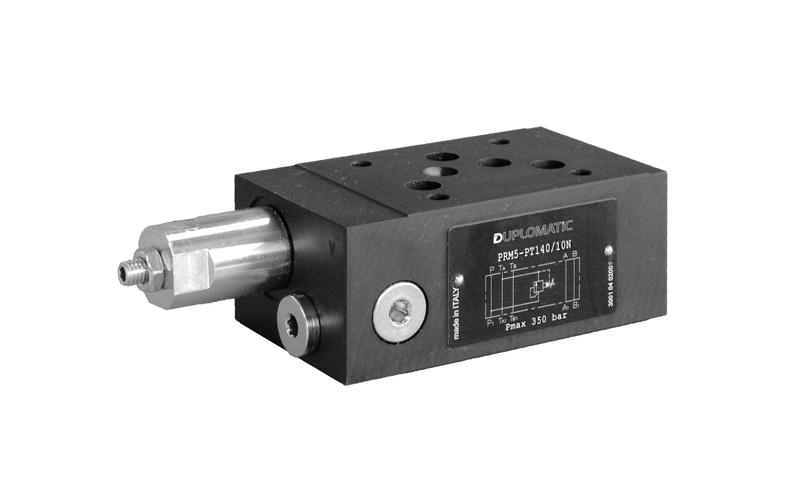

Pilot operated pressure relief valve
-

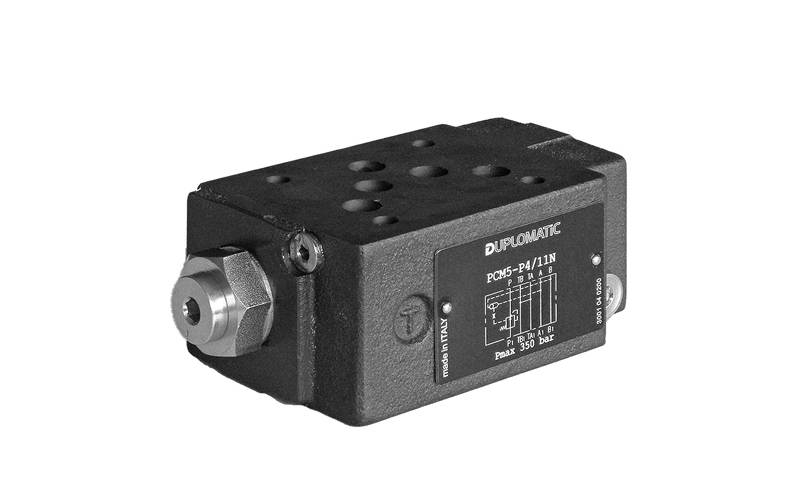

Two- and three-port pressure compensator, with fixed adjustment
-

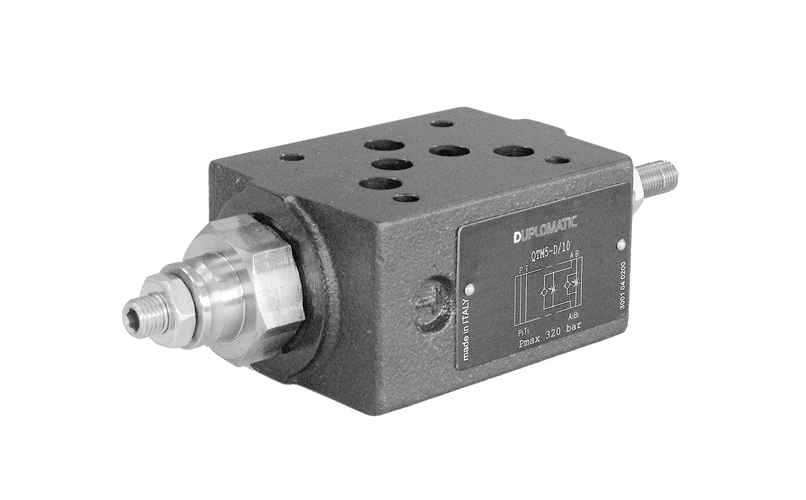

Throttle valve with free flow in one direction
-

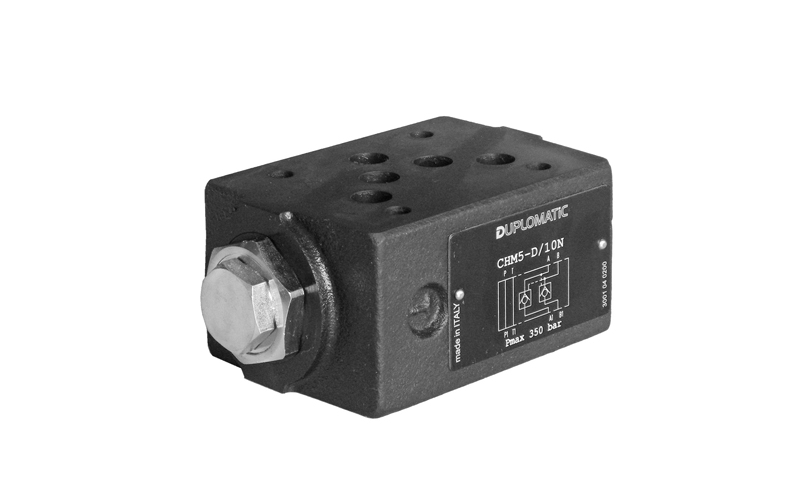

Check valve, pilot operated
-

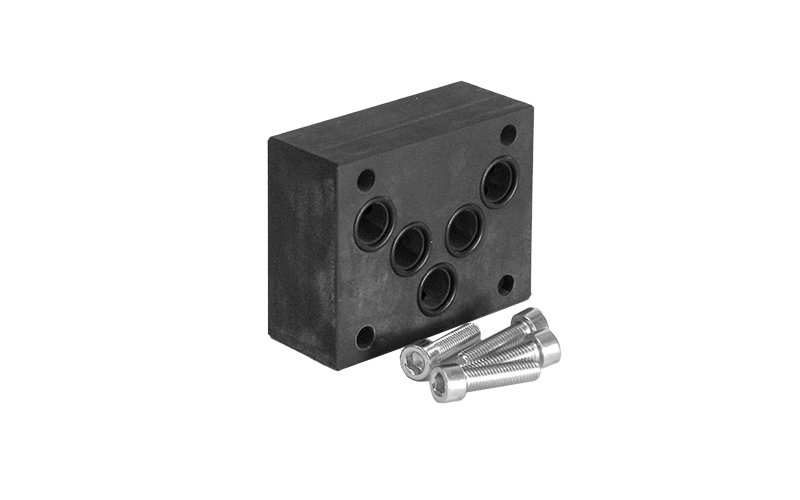

Blanking, cross and conversion plates
