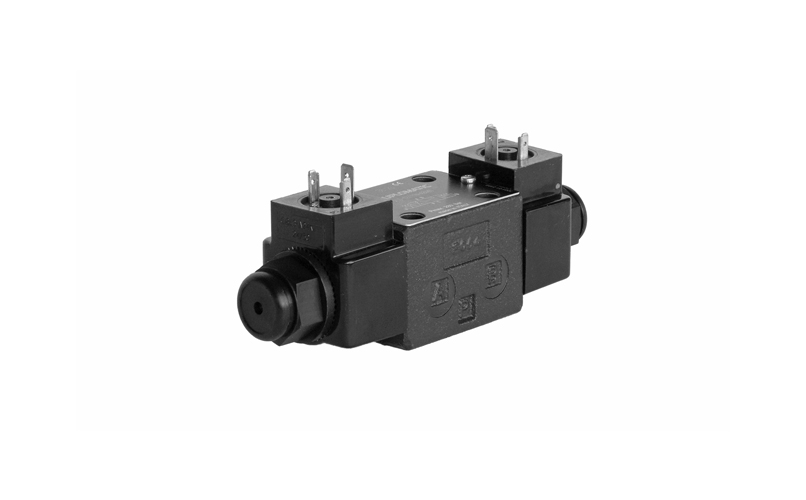

Solenoid actuated directional control valve compact
DL3
Details
- Catalog: 41211
- Size: ISO 4401-03
- Mounting Style: subplate
- Max Operating Pressure: 280 bar
- Max Flow: 50 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: IT (14/11/2023)
DESCRIPTION
DL3 are spools directional valves that control passage and direction of a flow, with mounting surface for subplate mounting. They are available with 3-ports and 4-ports design, with spring return or mechanical detent. The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drops. Wet armature solenoids with interchangeable coils are used.
The valve is available with DC or AC solenoids. DC solenoids can also be fed with AC power supply, by using connectors with a built – in rectifier bridge.
The standard manual override of the DC valve is boot protected and in alternative comes with the turning knob.
DL3 valves range also includes versions with high IP degree and corrosion resistance.
